Bubble Chart In Excel: A Comprehensive Guide

Excel is a versatile tool that allows users to create various types of charts and graphs to visualize data. One such chart is the Bubble Chart, which is useful for displaying three-dimensional data in a two-dimensional format. In this article, we will explore what a Bubble Chart is, how to create one in Excel, and provide some tips and tricks to enhance your data visualization skills.

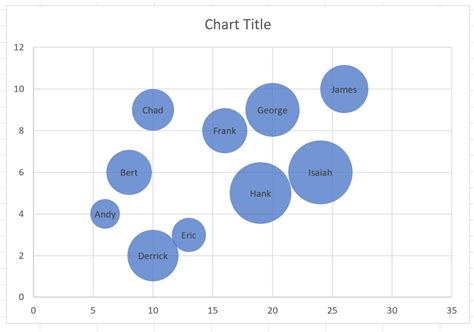

What is a Bubble Chart?

A Bubble Chart is a type of chart that displays data points as bubbles on a two-dimensional graph. It is similar to a scatter plot, but with an additional dimension represented by the size of the bubbles. The X and Y axes represent two variables, and the size of the bubbles represents a third variable. This makes Bubble Charts ideal for visualizing and comparing multiple sets of data.

How to Create a Bubble Chart in Excel

Creating a Bubble Chart in Excel is a straightforward process. Here are the steps:

1. Select the data you want to include in the chart. Make sure you have three sets of data – one for the X-axis, one for the Y-axis, and one for the bubble size.
2. Go to the “Insert” tab and click on the “Insert Scatter or Bubble Chart” button.
3. Select the “Bubble” chart type.
4. A blank chart will appear on your worksheet. Right-click on the chart and click on “Select Data”.
5. In the “Select Data Source” dialog box, click on the “Add” button to add each series of data.
6. For each series, enter the series name, X values, Y values, and bubble size values.
7. Click “OK” to close the dialog box.
8. Your Bubble Chart is now ready! You can customize the chart by adding axis labels, titles, and adjusting the formatting as needed.

Tips and Tricks for Creating a Bubble Chart

Here are some tips and tricks to help you create effective Bubble Charts in Excel:

1. Choose the right data: Ensure that the data you choose is suitable for a Bubble Chart. The X and Y variables should be numerical, and the bubble size variable should also be numerical and proportional to the data.
2. Use color to differentiate data sets: If you have multiple data sets, consider using different colors for each set to make it easier to distinguish between them.
3. Adjust bubble size and scaling: If the bubbles are too small or too large, you can adjust their size by changing the scaling options in the chart settings.
4. Add labels: Include labels for the bubbles to provide additional information or context. You can add data labels to each bubble or create a legend that explains the bubble sizes.
5. Customize the chart appearance: Excel offers various options to customize the appearance of your Bubble Chart, such as changing the colors, fonts, and chart styles. Experiment with different settings to create a visually appealing chart.

Sample Bubble Charts in Excel

Here are five sample Bubble Charts created in Excel:

Sample 1: Sales Data
This Bubble Chart displays sales data for different products. The X-axis represents the number of units sold, the Y-axis represents the sales revenue, and the size of the bubbles represents the profit margin.

Sample 2: Population Data
This Bubble Chart shows the population of different countries. The X-axis represents the GDP per capita, the Y-axis represents life expectancy, and the size of the bubbles represents the population size.

Sample 3: Stock Market Data
This Bubble Chart displays stock market data for different companies. The X-axis represents the market capitalization, the Y-axis represents the stock price, and the size of the bubbles represents the trading volume.

Sample 4: Education Data
This Bubble Chart shows educational data for different countries. The X-axis represents literacy rate, the Y-axis represents average years of schooling, and the size of the bubbles represents the GDP per capita.

Sample 5: Environmental Data
This Bubble Chart displays environmental data for different cities. The X-axis represents air pollution levels, the Y-axis represents water pollution levels, and the size of the bubbles represents the population density.

Frequently Asked Questions (FAQ) about Bubble Charts in Excel

Q: Can I create a Bubble Chart with more than three variables?

A: No, a Bubble Chart in Excel can only accommodate three variables – two for the X and Y axes and one for the bubble size.

Q: Can I change the shape of the bubbles in a Bubble Chart?

A: No, Excel only supports circular bubbles for Bubble Charts. If you want to use different shapes, you may need to explore other data visualization tools.

Q: How can I update the data in my Bubble Chart?

A: To update the data in your Bubble Chart, simply modify the values in the source data range. The chart will automatically update to reflect the changes.

Q: Can I add trendlines to a Bubble Chart?

A: No, trendlines are not supported in Bubble Charts. If you want to show trends in your data, consider using a different type of chart, such as a line or scatter plot.

Q: Can I create a Bubble Chart in Excel Online or Excel for Mac?

A: Yes, you can create a Bubble Chart in both Excel Online and Excel for Mac. The process is similar to creating a Bubble Chart in the Windows version of Excel.

Conclusion

Bubble Charts are a powerful tool for visualizing three-dimensional data in Excel. By representing data points as bubbles on a two-dimensional graph, you can easily compare and analyze multiple sets of data. With the tips and tricks provided in this guide, you can create visually appealing Bubble Charts that effectively communicate your data. Start experimenting with Bubble Charts in Excel and unlock new insights from your data!
